Hoekcontactkogellagers
Hoekcontactkogellagerszijn voorzien van loopvlakken op zowel de binnen- als buitenringen die verschoven zijn langs de as van het lager. Dankzij dit ontwerp kunnen ze gecombineerde belastingen ondersteunen, inclusief zowel radiale als axiale krachten, die tegelijkertijd werken. Naarmate de contacthoek steiler wordt, neemt ook het vermogen van deze lagers om drukbelastingen aan te kunnen aanzienlijk toe.
- View as

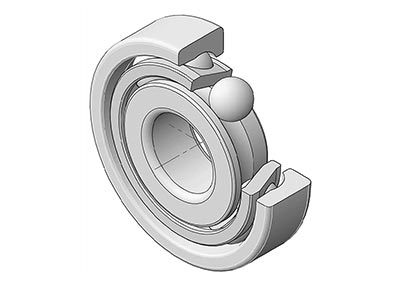

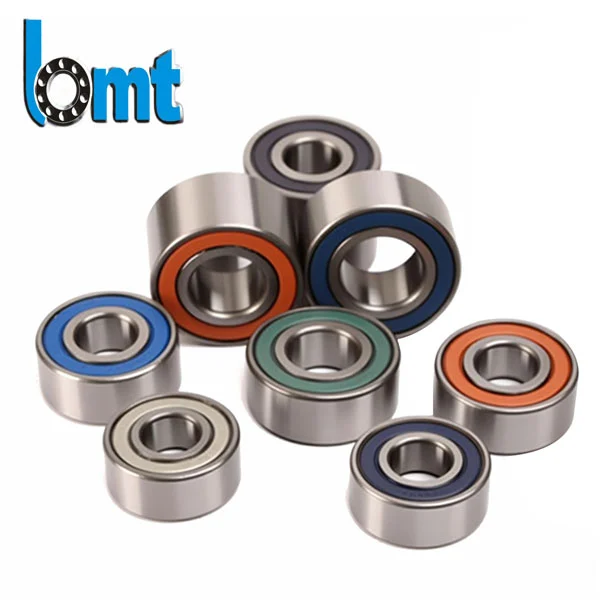

Hoekcontactkogellagers met enkele rij
Op het gebied van precisiemachines die axiale belastingen in één richting moeten weerstaan, hebben de hoekcontactkogellagers met één rij van BMT brede erkenning gekregen vanwege hun uitstekende prestaties. We gebruiken hoogwaardig lagerstaal en nauwkeurige verwerkingstechnologie om ervoor te zorgen dat elke set lagers stabiel kan werken onder verschillende zware werkomstandigheden.

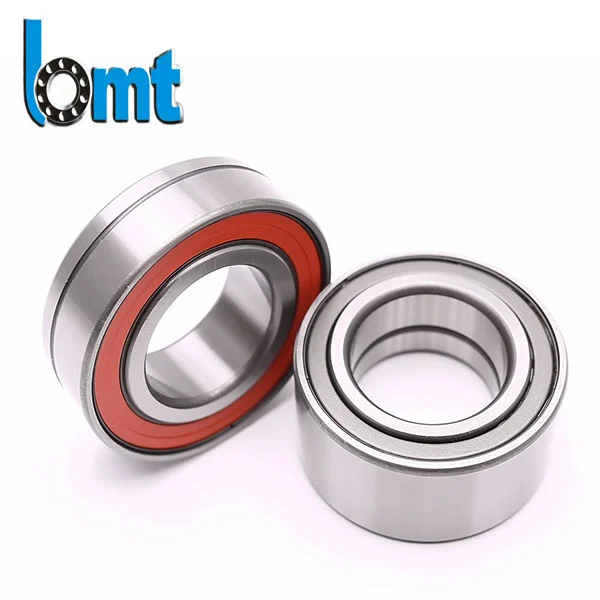

Vierpuntscontactkogellagers
Ingenieurs komen vaak een moeilijk probleem tegen op het gebied van het ontwerpen van mechanische apparatuur. Hoe kunnen we bidirectionele axiale belastingen effectief ondersteunen binnen een beperkte ruimte? Dit is precies de oorspronkelijke bedoeling achter onze ontwikkeling van vierpuntskogellagers. Na jaren van praktische verificatie zijn de lagers van het bedrijf BMT de voorkeursoplossing geworden voor tal van industriële toepassingen.

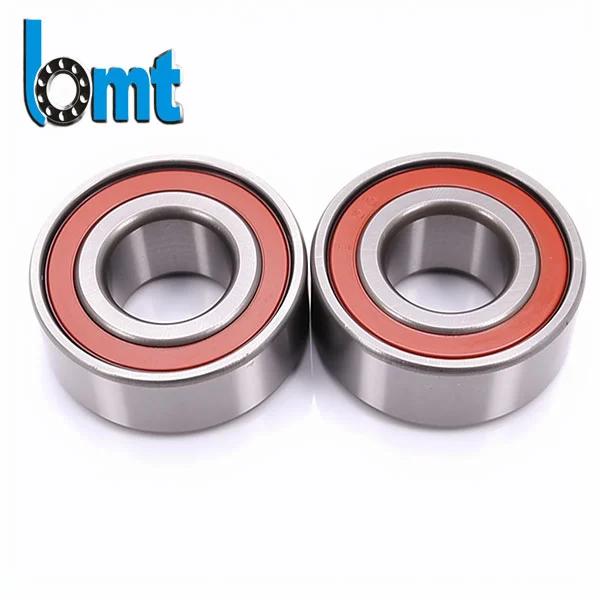

Dubbele rij hoekcontactkogellagers
Het BMT-bedrijf is als professionele fabrikant al bijna twintig jaar nauw betrokken bij de productie van dubbele rij hoekcontactkogellagers. BMT is zich terdege bewust van het belang van een stabiele werking van apparatuur voor de productie-efficiëntie. Dit product presteert goed bij het dragen van gecombineerde belastingen dankzij het unieke structurele ontwerp.

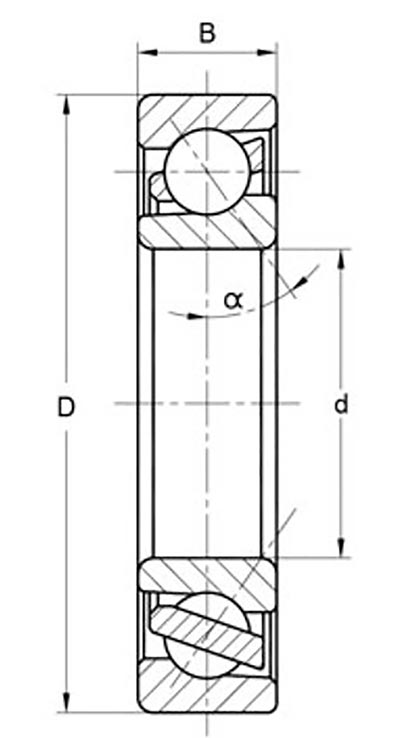

| Item | Afdichtingstype | d (mm) | D (mm) | B (mm) | Dynamische Cr (N) | Statische Cor (N) | Opmerkingen |
| 30/5 | -/2RS/2Z | 5 | 14 | 7 | 1810 | 950 | r=0,2 mm |
| 30/6 | -/2RS/2Z | 6 | 17 | 9 | 3100 | 1420 | r=0,3 mm |
| 30/7 | -/2RS/2Z | 7 | 19 | 10 | 3650 | 1700 | r=0,3 mm |
| 30/8 | -/2RS/2Z | 8 | 22 | 11 | 5200 | 2650 | r=0,3 mm |
| 3000 | -/2RS/2Z | 10 | 26 | 12 | 5700 | 3250 | r=0,3 mm |
| 3001 | -/2RS/2Z | 12 | 28 | 12 | 6200 | 3750 | r=0,3 mm |
| 3002 | -/2RS/2Z | 15 | 32 | 13 | 8600 | 5400 | r=0,3 mm |
| 3003 | -/2RS/2Z | 17 | 35 | 14 | 9200 | 6200 | r=0,3 mm |
| 3004 | -/2RS/2Z | 20 | 42 | 16 | 14500 | 9600 | r=0,6 mm |
| 3005 | -/2RS/2Z | 25 | 47 | 16 | 15500 | 11100 | r=0,6 mm |
| 3006 | -/2RS/2Z | 30 | 55 | 19 | 20300 | 15600 | r=1,0 mm |
| 3007 | -/2RS/2Z | 35 | 62 | 20 | 24500 | 19400 | r=1,0 mm |
| 3008 | -/2RS/2Z | 40 | 68 | 21 | 25500 | 21700 | r=1,0 mm |
| 3200 | -/2Z | 10 | 30 | 14 | 7800 | 4550 | r=0,6 mm |
| 3201 | -/2Z | 12 | 32 | 15.9 | 10600 | 5850 | r=0,6 mm |
| 3202 | -/2RS/2Z | 15 | 35 | 15.9 | 11800 | 7100 | r=0,6 mm |
| 3203 | -/2RS/2Z | 17 | 40 | 17.5 | 14600 | 9000 | r=0,6 mm |
| 3204 | -/2Z | 20 | 47 | 20.6 | 19600 | 12500 | r=1,0 mm |
| 3205 | -/2RS/2Z | 25 | 52 | 20.6 | 21200 | 14600 | r=1,0 mm |
| 3206 | -/2RS/2Z | 30 | 62 | 23.8 | 30000 | 21200 | r=1,0 mm |
| 3207 | -/2RS/2Z | 35 | 72 | 27 | 39000 | 28500 | r=1,1 mm |
| 3208 | -/2RS/2Z | 40 | 80 | 30.2 | 48000 | 36500 | r=1,1 mm |
| 3209 | -/2RS/2Z | 45 | 85 | 30.2 | 48000 | 37500 | r=1,1 mm |
| 3210 | -/2RS/2Z | 50 | 90 | 30.2 | 51000 | 42500 | r=1,1 mm |
| 3211 | -/2RS/2Z | 55 | 100 | 33.3 | 58500 | 49000 | r=1,5 mm |
| 3212 | -/2RS/2Z | 60 | 110 | 36.5 | 72000 | 61000 | r=1,5 mm |
| 3213 | -/2RS/2Z | 65 | 120 | 38.1 | 80000 | 73500 | r=1,5 mm |
| 3214 | -/2RS/2Z | 70 | 125 | 39.7 | 83000 | 76500 | r=1,5 mm |
| 3215 | -/2RS/2Z | 75 | 130 | 41.3 | 91500 | 85000 | r=1,5 mm |
| 3216 | -/2RS/2Z | 80 | 140 | 44.4 | 98000 | 93000 | r=2,0 mm |
| 3217 | -/2RS/2Z | 85 | 150 | 49.2 | 112000 | 150000 | r=2,0 mm |
| 3218 | -/2RS/2Z | 90 | 160 | 52.4 | 125000 | 170000 | r=2,0 mm |
| 3219-M | - | 95 | 170 | 55.6 | 140000 | 186000 | r=2,1 mm |
| 3220-M | - | 100 | 180 | 60.3 | 144000 | 201600 | r=2,1 mm |
| 3221-M | - | 105 | 190 | 65.1 | 162000 | 220500 | r=2,1 mm |
| 3222-M | - | 110 | 200 | 69.8 | 183600 | 252000 | r=2,1 mm |
| 3302 | - | 15 | 42 | 19 | 16300 | 10000 | r=1,0 mm |
| 3303 | - | 17 | 47 | 22.2 | 20800 | 12500 | r=1,0 mm |
| 3304 | -/2RS/2Z | 20 | 52 | 22.2 | 23200 | 15000 | r=1,1 mm |
| 3305 | -/2RS/2Z | 25 | 62 | 25.4 | 30000 | 20000 | r=1,1 mm |
| 3306 | -/2RS/2Z | 30 | 72 | 30.2 | 41500 | 28500 | r=1,1 mm |
| 3307 | -/2RS/2Z | 35 | 80 | 34.9 | 51000 | 34500 | r=1,5 mm |
| 3308 | -/2RS/2Z | 40 | 90 | 36.5 | 62000 | 45000 | r=1,5 mm |
| 3309 | -/2RS/2Z | 45 | 100 | 39.7 | 68000 | 51000 | r=1,5 mm |
| 3310 | -/2RS/2Z | 50 | 110 | 44.4 | 81500 | 62000 | r=2,0 mm |
| 3311 | -/2RS/2Z | 55 | 120 | 49.2 | 102000 | 78000 | r=2,0 mm |
| 3312 | -/2RS/2Z | 60 | 130 | 54 | 125000 | 98000 | r=2,1 mm |
| 3313 | -/2RS/2Z | 65 | 140 | 58.7 | 143000 | 112000 | r=2,1 mm |
| 3314 | -/2RS/2Z | 70 | 150 | 63.5 | 143000 | 166000 | r=2,1 mm |
| 3315 | -/2RS/2Z | 75 | 160 | 68.3 | 146700 | 173700 | r=2,1 mm |
| 3316-M | - | 80 | 170 | 68.3 | 158400 | 190800 | r=2,1 mm |
| 3317-M | - | 85 | 180 | 73 | 171000 | 205200 | r=3,0 mm |
| 3318-M | - | 90 | 190 | 73 | 194400 | 247500 | r=3,0 mm |
| 3319-M | - | 95 | 200 | 77.8 | 198000 | 256500 | r=3,0 mm |
| 3320-M | - | 100 | 215 | 82.6 | 212400 | 288000 | r=3,0 mm |
| 3322-M | - | 110 | 240 | 92.1 | 243000 | 351000 | r=3,0 mm |
| 3800 | -/2RS/2Z | 10 | 19 | 7 | 2120 | 1400 | r=0,3 mm |
| 3801 | -/2RS/2Z | 12 | 21 | 7 | 2190 | 1550 | r=0,3 mm |
| 3802 | -/2RS/2Z | 15 | 24 | 7 | 2430 | 1960 | r=0,3 mm |
| 3803 | -/2RS/2Z | 17 | 26 | 7 | 2480 | 2080 | r=0,3 mm |
| 3804 | -/2RS/2Z | 20 | 32 | 10 | 5800 | 4850 | r=0,3 mm |
| 3805 | -/2RS/2Z | 25 | 37 | 10 | 6000 | 5600 | r=0,3 mm |
| 3806 | -/2RS/2Z | 30 | 42 | 10 | 6300 | 6100 | r=0,3 mm |
| 3807 | -/2RS/2Z | 35 | 47 | 10 | 6700 | 7000 | r=0,3 mm |
| 3808 | -/2RS/2Z | 40 | 52 | 10 | 7000 | 7800 | r=0,3 mm |
| 3809 | -/2RS/2Z | 45 | 58 | 10 | 7200 | 8300 | r=0,3 mm |
| 3810 | -/2RS/2Z | 50 | 65 | 12 | 8700 | 10400 | r=0,3 mm |
| 3811 | -/2RS/2Z | 55 | 72 | 13 | 12100 | 15700 | r=0,3 mm |
| 3812 | -/2RS/2Z | 60 | 78 | 14 | 14500 | 17500 | r=0,3 mm |
| 3813 | -/2RS/2Z | 65 | 85 | 15 | 17700 | 21400 | r=0,6 mm |
| 3814 | -/2RS/2Z | 70 | 90 | 15 | 19200 | 23800 | r=0,6 mm |
| 3815 | -/2RS/2Z | 75 | 95 | 15 | 19400 | 24400 | r=0,6 mm |
| 3816 | -/2RS/2Z | 80 | 100 | 15 | 19600 | 25500 | r=0,6 mm |
| 7200B | - / 2RS | 10 | 30 | 9 | 5040 | 2470 | r=0,6 mm, r1=0,3 mm, a=13° |
| 7201B | - / 2RS | 12 | 32 | 10 | 7030 | 3370 | r=0,6 mm, r1=0,3 mm, a=14° |
| 7202B | - / 2RS | 15 | 35 | 11 | 7980 | 4230 | r=0,6 mm, r1=0,3 mm, a=16° |
| 7203B | - / 2RS | 17 | 40 | 12 | 9980 | 5420 | r=0,6 mm, r1=0,3 mm, a=18° |
| 7204B | - / 2RS | 20 | 47 | 14 | 13300 | 7410 | r=1,0 mm, r1=0,6 mm, a=21° |
| 7205B | - / 2RS | 25 | 52 | 15 | 14540 | 8550 | r=1,0 mm, r1=0,6 mm, a=24° |
| 7206B | - / 2RS | 30 | 62 | 16 | 20620 | 13400 | r=1,0 mm, r1=0,6 mm, a=27° |
| 7207B | - / 2RS | 35 | 72 | 17 | 26600 | 18050 | r=1,1 mm, r1=0,6 mm, a=31° |
| 7208B | - / 2RS | 40 | 80 | 18 | 32300 | 22330 | r=1,1 mm, r1=0,6 mm, a=34° |
| 7209B | - / 2RS | 45 | 85 | 19 | 35630 | 25650 | r=1,1 mm, r1=0,6 mm, a=37° |
| 7210B | - / 2RS | 50 | 90 | 20 | 37050 | 27080 | r=1,1 mm, r1=0,6 mm, a=39° |
| 7211B | - / 2RS | 55 | 100 | 21 | 46550 | 36580 | r=1,5 mm, r1=1,0 mm, a=43° |
| 7212B | - / 2RS | 60 | 110 | 22 | 56050 | 42750 | r=1,5 mm, r1=1,0 mm, a=47° |
| 7213B | - | 65 | 120 | 23 | 60300 | 49500 | r=1,5 mm, r1=1,0 mm, a=51° |
| 7214B | - | 70 | 125 | 24 | 66600 | 55800 | r=1,5 mm, r1=1,0 mm, a=53° |
| 7215B | - | 75 | 130 | 25 | 65700 | 55800 | r=1,5 mm, r1=1,0 mm, a=56° |
| 7216B | - | 80 | 140 | 26 | 76500 | 64800 | r=2,0 mm, r1=1,0 mm, a=59° |
| 7217B | - | 85 | 150 | 28 | 87300 | 77400 | r=2,0 mm, r1=1,0 mm, a=63° |
| 7218B | - | 90 | 160 | 30 | 102600 | 88200 | r=2,0 mm, r1=1,0 mm, a=67° |
| 7219B | - | 95 | 170 | 32 | 110700 | 95400 | r=2,1 mm, r1=1,1 mm, a=72° |
| 7220B M | - | 100 | 180 | 34 | 127800 | 111600 | r=2,1 mm, r1=1,1 mm, a=76° |
| 7221B M | - | 105 | 190 | 36 | 139500 | 127800 | r=2,1 mm, r1=1,1 mm, a=80° |
| 7222B M | - | 110 | 200 | 38 | 150300 | 138600 | r=2,1 mm, r1=1,1 mm, a=84° |
| 7224B M | - | 120 | 215 | 40 | 163800 | 160200 | r=2,1 mm, r1=1,1 mm, a=90° |
| 7226B M | - | 130 | 230 | 40 | 180000 | 183600 | r=3,0 mm, r1=1,1 mm, a=96° |
| 7228B M | - | 140 | 250 | 42 | 192600 | 207900 | r=3,0 mm, r1=1,1 mm, a=103° |
| 7230B M | - | 150 | 270 | 45 | 220500 | 247500 | r=3,0 mm, r1=1,1 mm, a=111° |
| 7232B M | - | 160 | 290 | 48 | 212400 | 252000 | r=3,0 mm, r1=1,1 mm, a=118° |
| 7234B M | - | 170 | 310 | 52 | 238500 | 292500 | r=4,0 mm, r1=1,5 mm, a=127° |
| 7301B | - | 12 | 37 | 12 | 10830 | 5040 | r=1,0 mm, r1=0,6 mm, a=16° |
| 7302B | - / 2RS | 15 | 42 | 13 | 13490 | 6840 | r=1,0 mm, r1=0,6 mm, a=18° |
| 7303B | - / 2RS | 17 | 47 | 14 | 16720 | 8550 | r=1,0 mm, r1=0,6 mm, a=20° |
| 7304B | - / 2RS | 20 | 52 | 15 | 19380 | 10550 | r=1,1 mm, r1=0,6 mm, a=23° |
| 7305B | - / 2RS | 25 | 62 | 17 | 26600 | 15010 | r=1,1 mm, r1=0,6 mm, a=27° |
| 7306B | - / 2RS | 30 | 72 | 19 | 33730 | 21000 | r=1,1 mm, r1=0,6 mm, a=31° |
| 7307B | - / 2RS | 35 | 80 | 21 | 40850 | 26130 | r=1,5 mm, r1=1,0 mm, a=35° |
| 7308B | - / 2RS | 40 | 90 | 23 | 50350 | 32780 | r=1,5 mm, r1=1,0 mm, a=39° |
| 7309B | - / 2RS | 45 | 100 | 25 | 61750 | 40850 | r=1,5 mm, r1=1,0 mm, a=43° |
| 7310B | - / 2RS | 50 | 110 | 27 | 71250 | 47500 | r=2,0 mm, r1=1,0 mm, a=47° |
| 7311B | - / 2RS | 55 | 120 | 29 | 81700 | 57950 | r=2,0 mm, r1=1,0 mm, a=51° |
| 7312B | - / 2RS | 60 | 130 | 31 | 91200 | 65550 | r=2,1 mm, r1=1,1 mm, a=55° |
| 7313B | - | 65 | 140 | 33 | 99000 | 73800 | r=2,1 mm, r1=1,1 mm, a=60° |
| 7314B | - | 70 | 150 | 35 | 113400 | 83700 | r=2,1 mm, r1=1,1 mm, a=64° |
| 7315B | - | 75 | 160 | 37 | 126000 | 96300 | r=2,1 mm, r1=1,1 mm, a=68° |
| 7316B | - | 80 | 170 | 39 | 139500 | 111600 | r=2,1 mm, r1=1,1 mm, a=72° |
| 7317B | - | 85 | 180 | 41 | 150300 | 124200 | r=3,0 mm, r1=1,1 mm, a=76° |
| 7318B | - | 90 | 190 | 43 | 162000 | 139500 | r=3,0 mm, r1=1,1 mm, a=80° |
| 7319B | - | 95 | 200 | 45 | 170100 | 150300 | r=3,0 mm, r1=1,1 mm, a=84° |
| 7320B M | - | 100 | 215 | 47 | 192600 | 177300 | r=3,0 mm, r1=1,1 mm, a=90° |
| 7321B M | - | 105 | 225 | 49 | 202500 | 192600 | r=3,0 mm, r1=1,1 mm, a=94° |
| 7322B M | - | 110 | 240 | 50 | 225000 | 220500 | r=3,0 mm, r1=1,1 mm, a=98° |
| 7324B M | - | 120 | 260 | 55 | 247500 | 256500 | r=3,0 mm, r1=1,1 mm, a=107° |
| 7326B M | - | 130 | 280 | 58 | 274500 | 292500 | r=4,0 mm, r1=1,5 mm, a=115° |
| 7328B M | - | 140 | 300 | 62 | 270000 | 310500 | r=4,0 mm, r1=1,5 mm, a=123° |
| 7330B M | - | 150 | 320 | 65 | 292500 | 351000 | r=4,0 mm, r1=1,5 mm, a=131° |
| 7332B M | - | 160 | 340 | 68 | 324000 | 405000 | r=4,0 mm, r1=1,5 mm, a=139° |
| 7334B M | - | 170 | 360 | 72 | 364500 | 477000 | r=4,0 mm, r1=1,5 mm, a=147° |
| 7406 ACM | - | 30 | 90 | 23 | 55600 | 37700 | hoek=25° |
| 7406BM | - | 30 | 90 | 23 | 47500 | 29000 | hoek=40° |
| 7407 ACM | - | 35 | 100 | 25 | 66400 | 41900 | hoek=25° |
| 7407BM | - | 35 | 100 | 25 | 60500 | 38000 | hoek=40° |
| 7408 ACM | - | 40 | 110 | 27 | 73700 | 42100 | hoek=25° |
| 7408BM | - | 40 | 110 | 27 | 70200 | 45000 | hoek=40° |
| 7409 ACM | - | 45 | 120 | 29 | 84500 | 55100 | hoek=25° |
| 7409BM | - | 45 | 120 | 29 | 80700 | 44100 | hoek=40° |
| 7410ACM | - | 50 | 130 | 31 | 115800 | 78300 | hoek=25° |
| 7410BM | - | 50 | 130 | 31 | 95600 | 64000 | hoek=40° |
| 7411 ACM | - | 55 | 140 | 33 | 121400 | 84500 | hoek=25° |
| 7411BM | - | 55 | 140 | 33 | 111000 | 76500 | hoek=40° |
| 7412 ACM | - | 60 | 150 | 35 | 131800 | 95300 | hoek=25° |
| 7412BM | - | 60 | 150 | 35 | 119000 | 86500 | hoek=40° |
| QJ208 | - | 40 | 80 | 18 | 52700 | 45000 | r=1,1 mm, Cu=3050N, vet: 6900 tpm |
| QJ209 | - | 45 | 85 | 19 | 58500 | 51000 | r=1,1 mm, Cu=3500N, vet: 6200 tpm |
| QJ210 | - | 50 | 90 | 20 | 61800 | 56000 | r=1,1 mm, Cu=3800N, vet: 5600 tpm |
| QJ211 | - | 55 | 100 | 21 | 79300 | 76500 | r=1,5 mm, Cu=4800N, vet: 5100 tpm |
| QJ212 | - | 60 | 110 | 22 | 92300 | 86500 | r=1,5 mm, Cu=5900N, vet: 4700 tpm |
| QJ213 | - | 65 | 120 | 23 | 104000 | 110000 | r=1,5 mm, Cu=6550N, vet: 4400 tpm |
| QJ214 | - | 70 | 125 | 24 | 114000 | 120000 | r=1,5 mm, Cu=7150N, vet: 4000 tpm |
| QJ215 | - | 75 | 130 | 25 | 117000 | 122000 | r=1,5 mm, Cu=7550N, vet: 3800 tpm |
| QJ216 | - | 80 | 140 | 26 | 138000 | 146000 | r=2,0 mm, Cu=8650N, vet: 3500 tpm |
| QJ217 | - | 85 | 150 | 28 | 148000 | 160000 | r=2,0 mm, Cu=9650N, vet: 3300 tpm |
| QJ218 | - | 90 | 160 | 30 | 174000 | 186000 | r=2,0 mm, Cu=11100N, vet: 3100 tpm |
| QJ219 | - | 95 | 170 | 32 | 199000 | 210000 | r=2,1 mm, Cu=12400N, vet: 3000 tpm |
| QJ220 | - | 100 | 180 | 34 | 225000 | 240000 | r=2,1 mm, Cu=12900N, vet: 2800 tpm |
| QJ222 | - | 110 | 200 | 38 | 265000 | 305000 | r=2,1 mm, Cu=15500N, vet: 2500 tpm |
| QJ224 | - | 120 | 215 | 40 | 286000 | 340000 | r=2,1 mm, Cu=17700N, vet: 2300 tpm |
| QJ306 | - | 30 | 72 | 19 | 44000 | 57500 | r=1,1 mm, Cu=2460N, vet: 8000 tpm |
| QJ307 | - | 30 | 80 | 21 | 55000 | 73000 | r=1,5 mm, Cu=3150N, vet: 7000 tpm |
| QJ308 | - | 40 | 90 | 23 | 67000 | 91500 | r=1,5 mm, Cu=3950N, vet: 6200 tpm |
| QJ309 | - | 45 | 100 | 25 | 87000 | 121000 | r=1,5 mm, Cu=5200N, vet: 5500 tpm |
| QJ310 | - | 50 | 110 | 27 | 102000 | 145000 | r=2,0 mm, Cu=6200N, vet: 5000 tpm |
| QJ311 | - | 55 | 120 | 29 | 118000 | 170000 | r=2,0 mm, Cu=7300N, vet: 4600 tpm |
| QJ312 | - | 60 | 130 | 31 | 135000 | 198000 | r=2,1 mm, Cu=8500N, vet: 4200 tpm |
| QJ313 | - | 65 | 140 | 33 | 153000 | 228000 | r=2,1 mm, Cu=9700N, vet: 3900 tpm |
| QJ314 | - | 70 | 150 | 35 | 172000 | 260000 | r=2,1 mm, Cu=10700N, vet: 3600 tpm |
| QJ315 | - | 75 | 160 | 37 | 187000 | 294000 | r=2,1 mm, Cu=11700N, vet: 3400 tpm |
| QJ316 | - | 80 | 170 | 39 | 202000 | 330000 | r=2,1 mm, Cu=12700N, vet: 3200 tpm |
| QJ317 | - | 85 | 180 | 41 | 218000 | 370000 | r=3,0 mm, Cu=13800N, vet: 3000 tpm |
| QJ318 | - | 90 | 190 | 43 | 235000 | 410000 | r=3,0 mm, Cu=14800N, vet: 2800 tpm |
| QJ319 | - | 95 | 200 | 45 | 251000 | 450000 | r=3,0 mm, Cu=16000N, vet: 2700 tpm |
| QJ320 | - | 100 | 215 | 47 | 302000 | 585000 | r=3,0 mm, Cu=20000N, vet: 2500 tpm |
| QJ322 | - | 110 | 240 | 50 | 338000 | 680000 | r=3,0 mm, Cu=22100N, vet: 2300 tpm |
| QJ324 | - | 120 | 260 | 55 | 359000 | 765000 | r=3,0 mm, Cu=23800N, vet: 2100 tpm |
| VLU200414 | - | 304 | 518 | 111 | 111000 | 110000 | Axiaal: Ca=169kN/Coa=295kN |
| VLU200544 | - | 434 | 648 | 123 | 123000 | 145000 | Axiaal: Ca=188kN/Coa=385kN |
| VLU200644 | - | 534 | 748 | 131 | 131000 | 171000 | Axiaal: Ca=200kN/Coa=455kN |
| VLU200744 | - | 634 | 848 | 138 | 138000 | 198000 | Axiaal: Ca=211kN/Coa=530kN |
| VLU200844 | - | 734 | 948 | 145 | 145000 | 224000 | Axiaal: Ca=222kN/Coa=600kN |
| VLU200944 | - | 834 | 1048 | 151 | 151000 | 250000 | Axiaal: Ca=231kN/Coa=670kN |
| VLU201094 | - | 984 | 1198 | 160 | 160000 | 290000 | Axiaal: Ca=244kN/Coa=770kN |
| VSU200414 | - | 342 | 486 | 111 | 111000 | 248000 | Axiaal: Ca=169kN/Coa=560kN |
| VSU200544 | - | 472 | 616 | 123 | 123000 | 325000 | Axiaal: Ca=188kN/Coa=740kN |
| VSU200644 | - | 572 | 716 | 131 | 131000 | 385000 | Axiaal: Ca=200kN/Coa=880kN |
| VSU200744 | - | 672 | 816 | 138 | 138000 | 445000 | Axiaal: Ca=211kN/Coa=1010kN |
| VSU200844 | - | 772 | 916 | 145 | 145000 | 510000 | Axiaal: Ca=222kN/Coa=1150kN |
| VSU-200944 | - | 872 | 1016 | 151 | 151000 | 570000 | Axiaal: Ca=231kN/Coa=1280kN |
| VSU201094 | - | 1022 | 1166 | 160 | 160000 | 660000 | Axiaal: Ca=244kN/Coa=1490kN |
